IoT Gateway Pip installation.

Package manager installation

To install ThingsBoard Gateway as python module, you should follow steps below:

1. Install required libraries to the system with apt:

1
sudo apt install python3-dev python3-pip libglib2.0-dev

2. Install ThingsBoard Gateway module with pip:

1
sudo pip3 install thingsboard-gateway

3. Download example of configs, create log folder:

• Downloading configs example:

  1
  wget https://github.com/thingsboard/thingsboard-gateway/releases/latest/download/configs.tar.gz


• Make directory for configs:

  1
  sudo mkdir /etc/thingsboard-gateway


• Make directory for logs:

  1
  sudo mkdir /var/log/thingsboard-gateway


• Unpack configs:

  1
  sudo tar -xvzf configs.tar.gz -C /etc/thingsboard-gateway


4. Set permission to the folders:

• For logs folder:

  1
  sudo chown YOUR_USER:YOUR_USER -R /var/log/thingsboard-gateway


• For configs folder:

  1
  sudo chown YOUR_USER:YOUR_USER -R /etc/thingsboard-gateway


• For tmp folder:

  1
  sudo chown YOUR_USER:YOUR_USER /tmp


Where YOUR_USER is a user who will run the gateway.

5. Configure gateway:

First, add a gateway device to your ThingsBoard instance by following these steps:

• Go to the “Entities” > “Gateways” page and click the “plus” icon in the upper right corner to add a new gateway.

• In the opened modal window input the gateway name(e.g., “My Gateway”), specify the “default” device profile, and click “Create”.

Now, we have to configure gateway using right host, port and credentials, for this purpose use the following steps:

• Click the “General configuration” button, and copy Access token on the “General” tab;
• Open Terminal and execute the following command:

1
nano /etc/thingsboard-gateway/config/tb_gateway.json

• Paste copied access token and replace platform’s host and port with yours;
• Save changes and exit from nano.

6. Configure logging:

• Click the “General configuration” button;

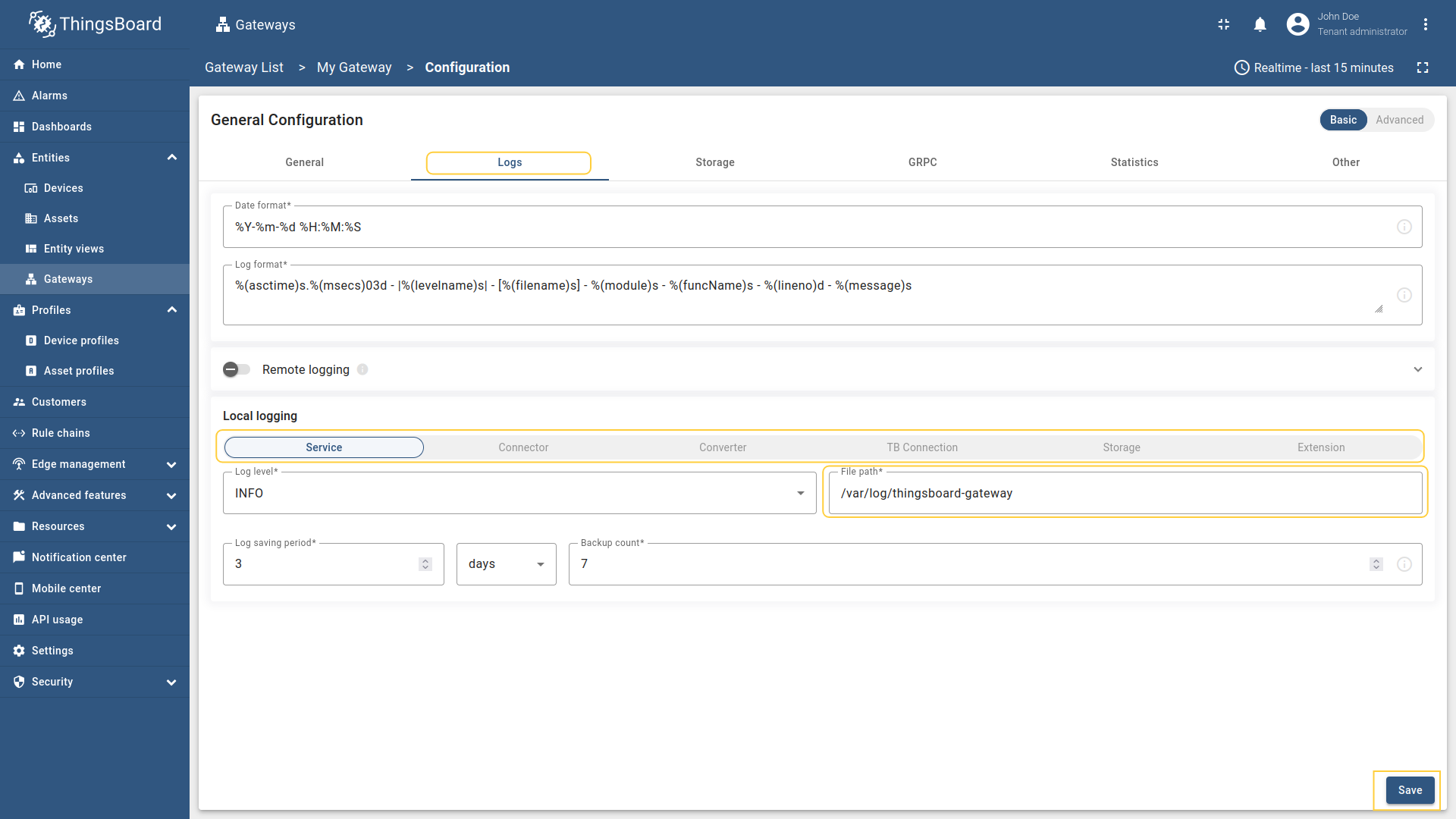

• Navigate to the “Logs” tab and replace the “File path” field value to:

1
/var/log/thingsboard-gateway

• Repeat the previous step for all tabs in the “Local logging” section;
• Click “Save”.

7. You can check installation with this command. For configuration please use Configuration guide:

1
thingsboard-gateway

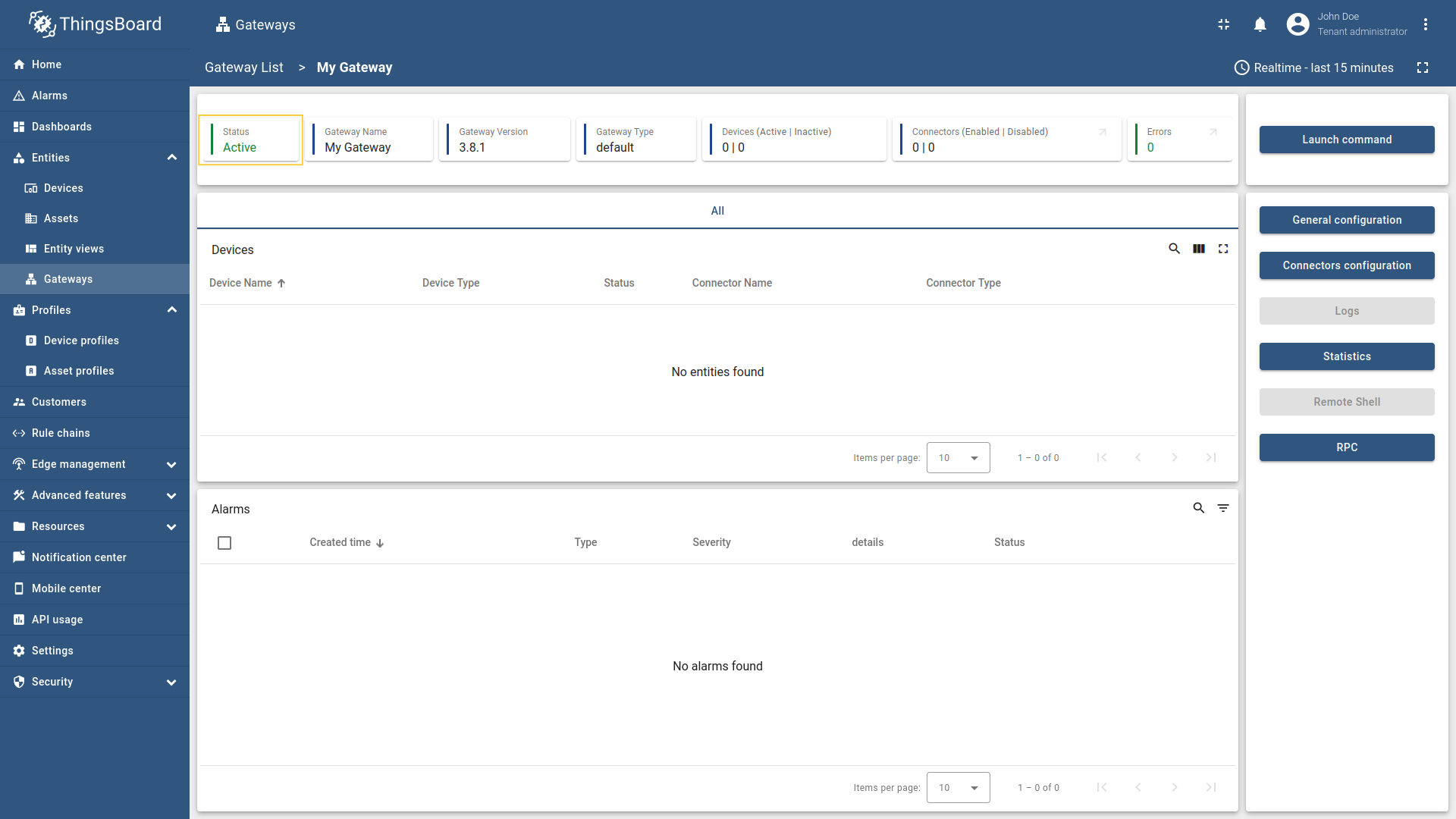

• If everything is done correctly, you will see the gateway status set to Active.
